AC DC gyina voltage tester ano .

AC DC gyina voltage tester ano .

AC DC gyina voltage tester ano no wɔ LCD a wɔde kyerɛ. Output voltage, rise, test, ne fall bere, ne frequency a ɛwɔ output voltage no mu no, MCU na ɛhwɛ so koraa. Wɔda breakdown voltage, current, ne voltage values ​​adi wɔ bere ankasa mu. Nnwinnade a ɛwɔ ntoatoaso no mu nyinaa bi ne arc detection ne test lead contact verification.

Nea ɛka ho no, nneɛma a wɔde siw nsu ano no . AC DC gyina voltage tester no sɔhwɛ a ɛyɛ soronko a ɛma wotumi di anim no ho dwuma a wodi ho adanse no fi hɔ no yi ɔhaw a ɛne sɛ wobehu nneɛma a asɛe a ɛyɛ atoro esiane sɔhwɛ mu kɔbere a abubu nti no fi hɔ. Wobetumi de adi dwuma kɛse wɔ semi-Automatic anaa automated production lines mu ama voltage a wogyina sɔhwɛ ano, a ɛma nneɛma a wɔyɛ no sɔhwɛ mu ahotoso tu mpɔn ankasa.

1. Ɛnyɛ den sɛ wode bedi dwuma: interface a ɛyɛ mmerɛw ne nea ɛyɛ mmerɛw-To-Kenkan Display ma saa adwinnade yi yɛ tẽẽ na ɛnyɛ den sɛ wode bedi dwuma.
2. Portable Design: Ne kɛseɛ a ɛyɛ ketewa ne nea ɛtumi fa mu no ma ɛyɛ mmerɛ sɛ wɔde voltage tester no bɛba adwumayɛbea anaasɛ ɛbɛdi akɔneaba wɔ adwumayɛbea bi mu.

3. China ne Engiresi kasa mu nkitahodi, list display, Multi-Stune aba wɔ screen biako so .
4. Keyboard lock function, ɔno ankasa hwɛ sɔhwɛ tebea so bere a wɔagyae no .
5. Akɔm a wɔte ne nea wotumi hu ma nneɛma a asɛe .
6. ARC Detection adwuma, a wotumi paw mprempren ne level modes .
7. Nnipa nipadua ho banbɔ a ɛko tia anyinam ahoɔden (GFI) .
8. Nsiesiei a wɔpɛ wɔ voltage a ɛkɔ soro, bere a wɔde sɔ hwɛ, ne bere a wɔde hwe ase ho .

Akwankyerɛ a ɛfa sɛnea wɔde di dwuma ne sɛnea wɔyɛ adwuma wɔ AC DC no mu no gyina voltage tester ano .

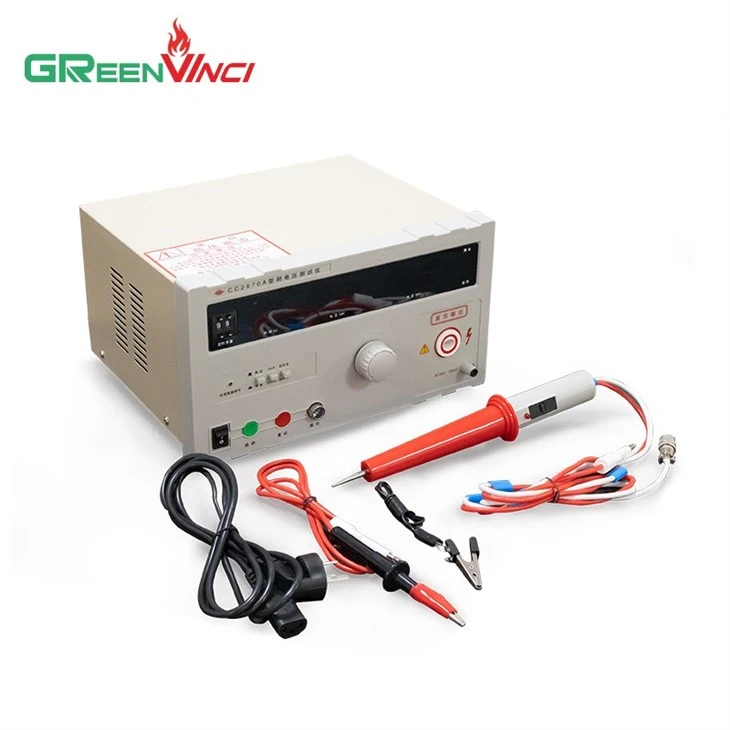

1. Anim panel nkyerɛkyerɛmu (hwɛ mfonini ) .

1.1 Power Switch: "Me" kyerɛ tumi a ɛwɔ so; "O" kyerɛ sɛ anyinam ahoɔden adum.

1.2 Start button: Mia saa button yi so pɛnkoro na fi sɔhwɛ no ase. Test red light no hyerɛn, na ɛwɔ voltage output wɔ output terminal no so.

1.3 Reset button: Mia saa bɔtn yi so pɛnkoro na san de adwinnade no si hɔ, na kanea kɔkɔɔ a wɔde sɔ hwɛ no bɛdum. Sɛ wo mia saa bɔtn yi so bere a adwinnade no resɔ ahwɛ wɔ-leakage so a, wubetumi ayi alarm nnyigyei no bere koro mu na woasan asiesie over-leakage green light no.

1.4 voltage adjustment knob: Yɛ nsakraeɛ wɔ output voltage no kɛseɛ mu, dannan no counterclockwise na ama voltage a ɛwɔ electric no a ɛtumi gyina tester ano no so atew; Sɛ ɛnte saa a, voltage no kɔ soro.

1.5 Wire Control Test Connection Socket: Sɛ wode wire control test no redi dwuma a, sɔhwɛ no befi ase bere a woabɔ test rod no nsa no so (ɛnyɛ nea wɔayi no adi), na ɛbɛsan aba bere a wɔayi no no. Sɛ wode wire control test no redi dwuma a, kyerɛ sɛ, sɛ wɔde wire control plug no ahyɛ mu a, bere adwuma a ɛwɔ adwinnade no mu no nyɛ adwuma.

1.6 High-voltage output terminal: Outputs AC voltage a ɛkorɔn sen biara a ɛyɛ 5000V, fa ade no awiei biako bata sɔhwɛ no ho wɔ sɔhwɛ no mu .

1.7 Asase so terminal (sɔhwɛ circuit no awiei a ɛba fam): Wɔde abɔ ade no awiei foforo a ɛwɔ sɔhwɛ no ase wɔ sɔhwɛ no mu .

1.8 Over-LEAKAGE LIGHT: Sɛ saa hann yi sɔ a, ɛkyerɛ sɛ current a ade a wɔresɔ ahwɛ no asɔ ahwɛ no boro bo a wɔahyɛ no so na ɛnyɛ nea ɛfata.
