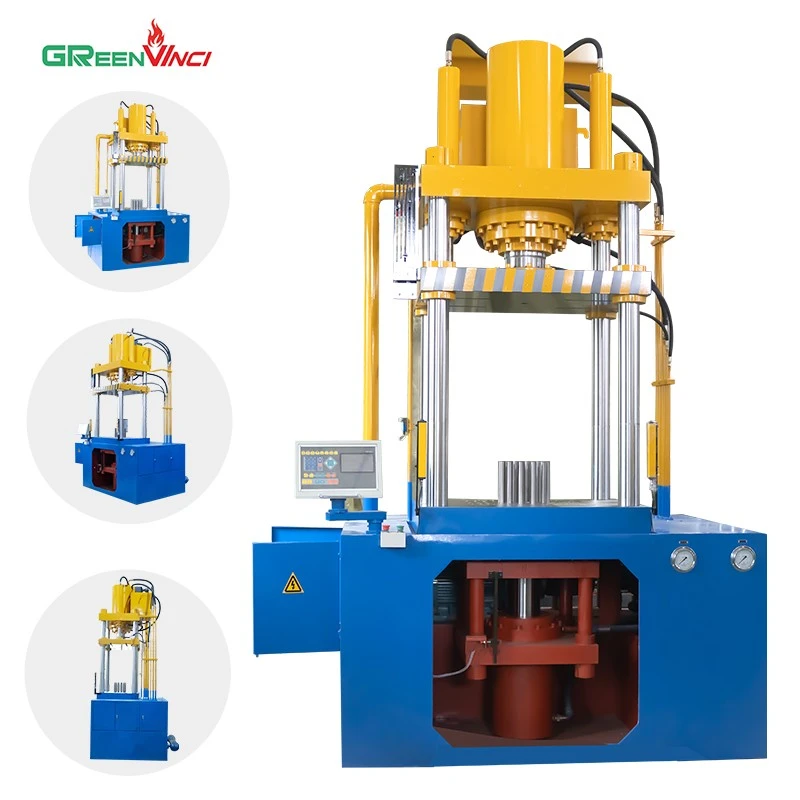

Foshan Davinci Technology Co., Ltd. yɛ biako a wotumi de ho to so sen biara manufacturers ne suppliers 4 post hydraulic press wɔ China, nso boa customized ɔsom. Yɛsrɛ sɛ ntwentwɛn wo nan ase sɛ wobɛtɔn no kɛse cheap 4 post hydraulic press wɔ stock ha afi yɛn adwumayɛbea hɔ. Sɛ wopɛ sɛ wususuw nneɛma bo ho a, di yɛn ho nkɔmmɔ.
Yɛn Hydraulic Press no mu Nneɛma Titiriw
1. High Efficiency & Precision Stretching: 4 post hydraulic press a wɔde ahyɛ mu ntɛmntɛm -siane ne ntɛm retraction nhyehyɛe ma maximize production ahoɔhare
2. Advanced PLC Control System: Ɔno ankasa-ayɛ PLC a wɔayɛ no sɛnea gua so ahiade ne adetɔfo mmuae ma adwumayɛ a eye sen biara ne osuahu a ɔde di dwuma.
3. First-tier ofie ɛlɛtrɔnik nneɛma hwɛ hu sɛ wotumi de ho to so na ɛtra hɔ kyɛ.
4 . Kɛseɛ-Capacity Oil Tank (900L) :Oil tank tumi yɛ kɛseɛ, na nnwinnadeɛ no tu mmirika yie,ɛtrɛw mfiri nkwa nna mu.
5. High-Power Motor (30kW): Tumi a ɛyɛ den a ɛba sɛ wɔde toto standard 22kW motors ho a.
6 . Ahobanbɔ Ahobanbɔ Nhyehyɛe: Automatic Emergency Stop – Sɛ odwumayɛni bi bɛn adwumayɛbea no bere a ɔreyɛ adwuma a, hydraulic press no gyina ntɛm ara de siw akwanhyia ano na ɛhwɛ ma nea ɔde di dwuma no ahobammɔ.
Nneɛma a Wɔyɛ no Ho Nkyerɛkyerɛmu
|
dwumadie |
unu |
GV-Y28D-45 na ɛwɔ hɔ |
GV-Y280-70 na ɛwɔ hɔ |
GV-Y28D-100 na ɛwɔ hɔ |
GV-Y28D-120 na ɛwɔ hɔ |
GV-Y280-150 na ɛwɔ hɔ |
GV-Y280-200 na ɛwɔ hɔ |
GV-Y80-250 na ɛwɔ hɔ |
GV-Y28D-300 na ɛwɔ hɔ |
GV-Y28D-350 na ɛwɔ hɔ |
|
|
Master cylinder nhyɛso |
KN |
300 |
400 |
650 |
800 |
1000 |
1250 |
1500 |
2000 |
2500 |
|
|
Master cylinder a wɔde hyɛ mu |
mm |
450 |
450 |
450 |
450 |
550 |
550 |
600 |
600 |
650 |
|
|
Fa cylinder nhyɛso a ɛba fam |
KN |
150 |
300 |
350 |
400 |
500 |
750 |
1000 |
1000 |
1000 |
|
|
Fa cylinder stroke a ɛba fam nson |
mm |
200 |
220 |
240 |
240 |
250 |
250 |
300 |
300 |
300 |
|
|
Nsu a ɛyɛ adwuma nhyɛso |
Mp |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
|
Loading cylinder stroke a wɔde hyɛ mu |
mm |
190 |
190 |
195 |
195 |
200 |
230 |
250 |
250 |
250 |
|
|
Dwumadie crossbeam to Adwumayɛbea ntwemu tenten |
nea ɛsen biara |
mm |
750 |
800 |
850 |
850 |
900 |
920 |
1020 |
1020 |
1020 |
|
a ɛba fam koraa |
mm |
300 |
350 |
400 |
400 |
350 |
370 |
420 |
420 |
370 |
|
|
Dwumadie nhwɛsoɔ beam ahoɔhare |
ntɛm |
mm/s |
200 |
200 |
240 |
240 |
175 |
175 |
170 |
240 |
170 |
|
twe mu |
mm/s |
25 |
23 |
22 |
21 |
20 |
18 |
17 |
18.5 |
16 |
|
|
sankɔhwɛ |
mm/s |
220 |
210 |
220 |
210 |
190 |
190 |
330 |
470 |
280 |
|
|
Adwumayɛbea no kɛse a etu mpɔn Benkum ne nifa(wɔ adum no mu) * anim ne akyi (wɔ kyerɛwpon no ano) . |
mm |
385X450 |
505×550 |
615X630 |
615X630 |
700×700 |
770X850 |
870X880 |
870X880 |
1050X1050 |
|
|
Ɔsorokɔ a ɛwɔ adwumayɛbea a efi fam |
mm |
880 |
945 |
990 |
990 |
1140 |
1190 |
1280 |
1290 |
1330 |
|
|
Motor Tumi a Ɛwɔ Hɔ |
KW |
7.5 |
7.5 |
11 |
11 |
18.5 |
22 |
22 |
30 |
30 |
|
|
Abɔnten so nsusuwii ahorow Benkum ne nifa x anim ne akyixheight |
mm |
1480X1010 X2660 |
1630X1110 X2800 |
1780X1190 X2950 |
1780X1190 X2950 |
1960X1260 X3260 |
2050X1410 X3410 |
2150X1440 X3930 |
2160X1490 X4000 |
2330X1660 X4110 |
|
Abisadeɛ
Nneɛma a wɔde yɛ dade ho adwuma
Yɛn 4 post hydraulic press no yɛ nea wɔayɛ ama deep drawing ahorow ahorow dade workpieces, ma ɛyɛ papa ma cookware ne nketewa mfiri manufacturing.
Nnwuma a Wɔtaa De Di Dwuma Ka Ho
Stainless Steel, Aluminum & Iron Sheet Forming a wɔde yɛ Kettle nipadua no, Rice cooker mu nkuku & mfinimfini layers, Non-stick pan nipadua, Stockpot ne cookware hardware afã afoforo.
Ɔkwan bɛn so na wosiesie nnwinnade no?
Hydraulic ngo nhwehwɛmu
Ɛho nhia sɛ wɔsesa hydraulic oil no bere biara, nanso ɛho hia sɛ wɔhwɛ sɛ ngo dodow no wɔ dipstick no mu anaa. Sɛ ɛba fam sen anohyeto a ɛwɔ fam no a, fa ngo gu mu ntɛm ara; bere koro no ara mu no, hwɛ sɛ ngo no kɔla yɛ nea ɛda adi anaa. Sɛ ɛyɛ tuntum anaa fitaa a ɛte sɛ nufusu a, ɛsɛ sɛ wɔsesa.
Leakage nhwehwɛmu a wɔyɛ
Hwɛ sɛ ngo paipu, nkwaa, ne ngo nsukorabea ahorow no mu nsu nkɔ mu na sɛ ebia nkaa a wɔde hyɛ mu no asɛe da biara anaa.
Siesie nnwinnade no ho
Yi dade a asɛe ne ngo a ɛwɔ adwumayɛbea ne akwankyerɛ keteke kwan no so (na amma nsɔano no ansɛe).
Hwɛ mu daa
Hwɛ daa sɛ ebia adum ne nkuku a wɔde si hɔ no bolt ne nnua no ayɛ mmerɛw anaa
4 Post Hydraulic Press yɛ adwinnadeɛ titire a ɛho nhia wɔ ofie nnwinnadeɛ nketewa ne adididan mu nneɛma a wɔyɛ mu, titire a ɛfata sɛ wɔyɛ dadeɛ afã a ɛhia sɛ wɔde nwene baako-afã, wie a ɛkorɔn, ne nsusuiɛ a ɛyɛ den. Wɔnam akwan horow te sɛ nea wɔtrɛw mu, wɔde stamp, ne nea wɔde yɛ nneɛma so titiriw na ɛyɛ nneɛma.
Nneɛma pɔtee a wɔde di dwuma ne nneɛma a wɔyɛ ho nhwɛso ne: dade nkuruwa a wɔde yɛ blender ne juicers, akyi akorade a wɔde yɛ paanoo yɛfo, dade nkuku a ɛwɔ mu ne akyi akorade a wɔde yɛ aburow a wɔde noa, nketewa a wɔde yɛ mframa fryers, kettle nipadua, woks, saucepans, frying pans, nufusu kyɛnsee, ne pressure cooker mu nkuku.
So wopɛ sɛ wosakra mfiri a wɔde yɛ ofie mfiri nketewa ne nneɛma a wɔde yɛ aduan no sɛnea wopɛ? Fa ahofadi di yɛn ho nkɔmmɔ na woanya ano aduru!
