Nneɛma a wɔyɛ ho nkyerɛkyerɛmu .

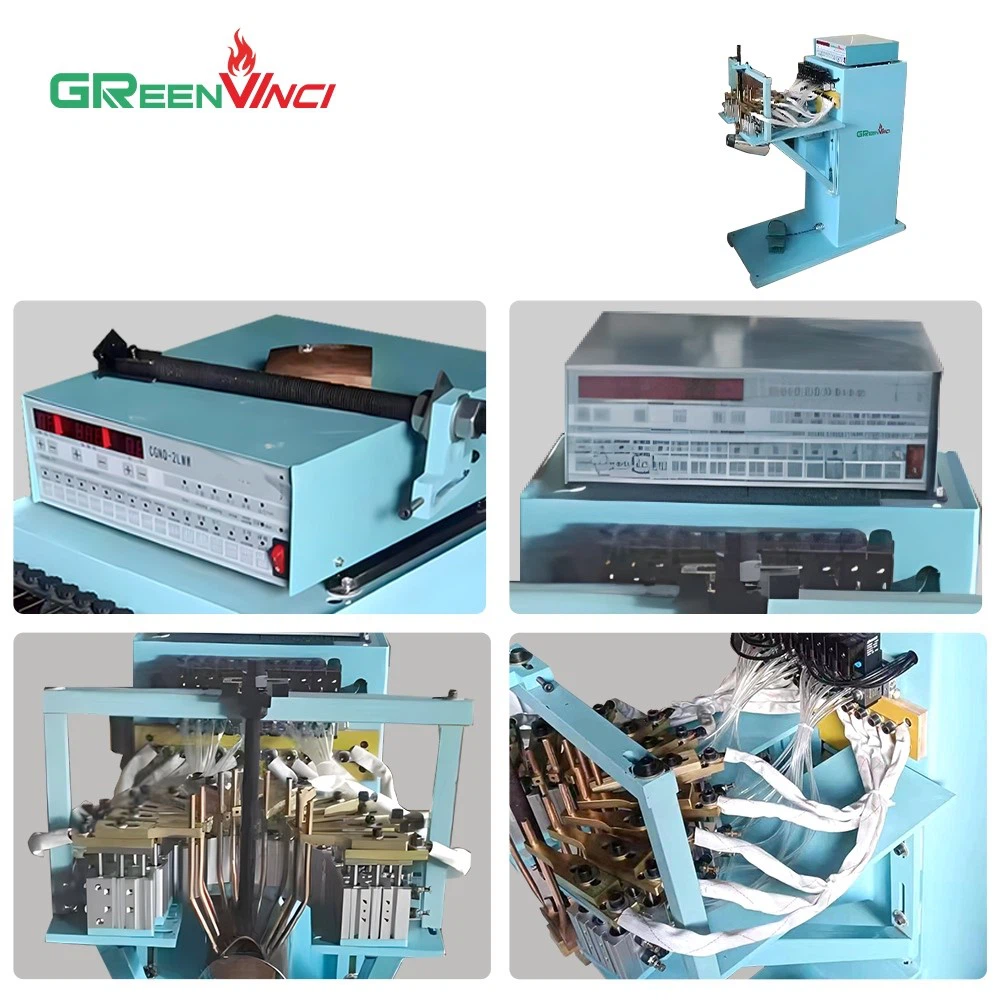

Electric kettle welding afiri no yɛ afiri a ɛyɛ adwuma ankasa a wɔayɛ no pɔtee sɛ wɔde bɛwe dade a ɛnyɛ den a ɛwɔ nipadua no mu no akɔ kettle nipadua mu. Ne fã titiriw ne sɛ ɛwɔ welding ti ahorow pii a ɛhwɛ so nnidiso nnidiso (welding needles) a ɛyɛ weld wɔ mmeae pii a wɔahyɛ ato hɔ wɔ spout no ano ma ɛyɛ circumferential weld a ɛyɛ den a wɔakata so.
|
Tumi a ɛwɔ mu a ɛkyerɛ sɛ ɛyɛ adwuma (KVA): . |
25 KVA . |
|
Rated Primary voltage V: . |
380V |
|
Mpɛn dodow a wɔde di dwuma (Hz): . |
50/60 Hz . |
|
Maximum tiawa-Circuit Mprempren A: |
13500A |
|
Electrode Akwantu (mm): . |
35 mm . |
|
Nsu a ɛsen fa mu a ɛma onwini (L/min) . |
8 l/min . |
|
Electrode nhyɛso a ɛsen biara N: |
245 N |
|
Lower Electrode Holder Akwantu kwan (MM) (Movable type) . |
150 mm . |
|
Lower electrode nsa ntrɛwmu nsusuwii (mm) (fixed type): |
160mm-210mm . |
|
Nneɛma a emu duru yɛ kɛse KQ: |
300 kg . |
|
Asɛdeɛ kyinhyia %: . |
50% |
|
Abɔnten so nsusuwii (atenten x trɛw x sorokɔ) wɔ mm mu: |
710x1030x1320mm . |
Nneɛma a wɔyɛ no anammɔn: .
1. Kettle Body Loading: Wɔde manual conveyor belt na ɛma kettle nipadua no pɛpɛɛpɛ kɔ welding station no so na wɔde si hɔ.
2. spout loading: Spout no fa vibratory feeder anaasɛ fixture soronko bi na pre-de si gyinabea a wɔakyerɛ wɔ kettle nipadua no so.
3. Clamping and fixing: Fixture soronko (JIG) siesie kettle nipadua no denneennen na ɛbɔ fi mu anaa akyi, na ɛhwɛ hu sɛ ɛnkɔ bere a wɔreyɛ welding no.
Wɔ anyinam ahoɔden kettle welding afiri no akyi . Fi ase, welding needles no yɛ spot-weled mmiako mmiako. Saa kwan yi hwehwɛ sɛ wɔde nnwinnade nhyɛso kakraa bi na ɛyɛ na ɛma ahoɔden a ɛdɔɔso ma weld point biara.
.
Mfaso titiriw a ɛwɔ so .
High efficiency: Wɔde spout no nyinaa welded wɔ clamping adwuma biako mu, ɛyɛ ntɛmntɛm kɛse sen single{}}ti spot welding, a cycle time yɛ 3-4 seconds wɔ spout biara mu.
Ahoɔden a ɛkorɔn ne nsɔano a ɛkorɔn: Wɔkyekyɛ weld nsɛntitiriw pii pɛpɛɛpɛ twa spout no ho hyia, na ɛma egyina tumi kɛse a ɛtwetwe ne torque tumi ano bere a ɛhwɛ hu sɛ nsu a ɛretu koraa-adanse nkitahodi no.
Ntotoe a ɛkorɔn: Adeyɛ a ɛyɛ adwuma koraa no yi nnipa mfomso fi hɔ, na ɛma wonya awerɛhyem sɛ weld point gyinabea, bun, ne ahoɔden a ɛkɔ so daa wɔ ade biara ho.
Aesthetically pleasing: weld points nketewa a ɛyɛ pɛ no ma ɛyɛ fɛ na ɛnyɛ nea ɛda adi.
Automation a ɛkorɔn: ɛho nhia sɛ wɔyɛ adwumayɛfo ntetee kɛse biara; Nea ehia ara ne sɛ wɔn a wɔyɛ adwuma no de kettle nipadua no bɛto anyinam ahoɔden kettle welding afiri no so .
So wuhia anyinam ahoɔden kettle a wɔyɛ no sɛnea wopɛ anaasɛ kettle CKD a wɔyɛ no?
Fa w’ahiade mena yɛn, di yɛn ho nkɔmmɔ!
Tags a ɛyɛ hyew .: Electric kettle welding afiri, China anyinam ahoɔden kettle welding afiri a wɔyɛ, wɔn a wɔde nneɛma ma .
