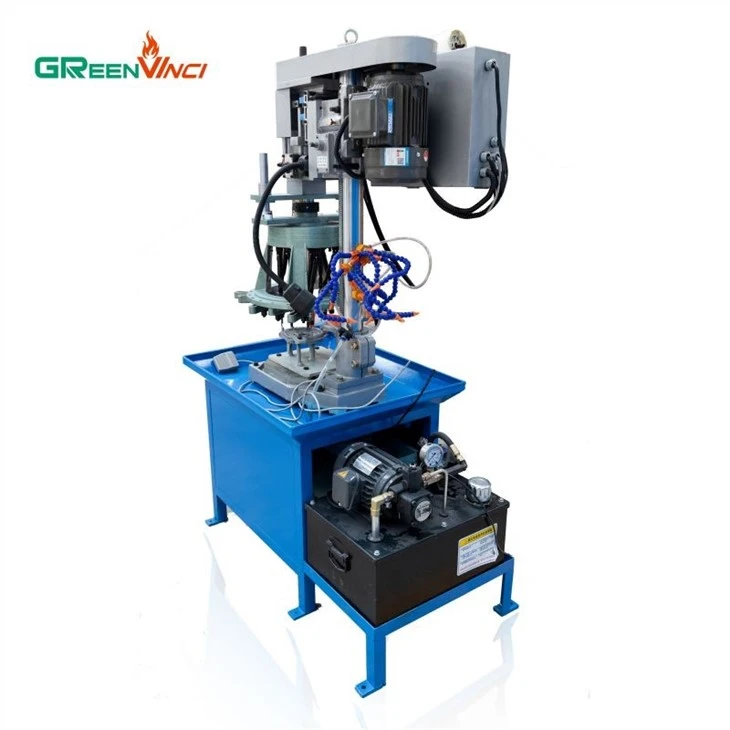

Multi-Afiri a wɔde bɔ nneɛma so .
Ade titiriw a ɛwɔ mu .
Wɔayɛ Multi-Spindle tapping mfiri no pɔtee ama nneɛma a ɛhia sɛ wɔbɔ ntokuru pii bere koro mu. Nneɛma a wɔde di dwuma kɛse no bi ne ɔhyew mprɛte a wɔde yɛ aburow a wɔde noa aduan ne die-cast aluminum fan covers.
Nnwinnade so mfaso:
1. Pɛpɛɛpɛ ne ne su a ɛkorɔn: Multi-axis tapping machine no hoahoa ne ho sɛ ɛyɛ pɛpɛɛpɛ a ɛkɔ ±0.01mm, a ɛhwɛ ma tapping a mfomso biara nni ho bere biara, ma product aba no tu mpɔn.
2. Efficiency ne automation a ɛkorɔn: afiri a wɔde bɔ so a ɛyɛ adwuma ankasa koraa no betumi abɔ tokuru akron bere koro mu na ɛyɛ adwuma 24/7, na ɛma nneɛma a wɔyɛ no yɛ adwuma yiye na ɛtew adwumayɛfo ne nneɛma a wɔyɛ so.
3. Adapability a ɛtrɛw: Ebetumi agye tap ahorow, ayɛ nsakrae wɔ nneɛma ahorow ne tokuru no ntwemu so.
4. Adwumayɛ a ɛnyɛ den ne adwumayɛfo a wɔkora wɔn so: Afiri no yɛ mmerɛw sɛ wɔde bedi dwuma na ɛhwehwɛ sɛ wonya mfiridwuma ho nimdeɛ kakraa bi, na ɛtew ahotoso a wɔde to adwumayɛfo a wɔn ho akokwaw ne adwumayɛfo ka so kɛse.
.
Nneɛma a wɔyɛ .
Multi-spindles tapping mfiri dwumadi ahorow:
1 Operation a ɛyɛ adwuma:
Wɔ tapping adwumayɛ mu no, sɛ adwumayɛ no nyɛ nea ɛfata, titiriw no, tapping ade no yɛ soft processing material,ebetumi ama imperfect threads.Sɛnea ɛbɛyɛ a wobenya thread a eye sen biara bere a wɔrebɔ no, nnyinasosɛm koro no ara a ɛsɛ sɛ wɔde lathe cutting thread no di dwuma. Multi-spindles tapping afiri no wɔ rack ne gear a wɔaka abom soronko. Saa nkabom yi de nkɛntɛnso koro no ara ba sɛnea lathe te no.
1 automatic cycle (kɔso ne biako kyinhyia) .
Spindle dannan kɔ n’anim bere a tap no du bun a wɔhwehwɛ no mu no, esiane sɛ low limit micro switch no yɛ adwuma nti, spindle no bɛdan ne ho na tap no ayi afi ne ho. Continuous cycle, spindle no bɛdannan akɔ anim bio, tap no adu set no mu bun no, spindle no bɛdane ne ho na tap no bɛsan ayi ne ho bio. Wɔ kyinhyia biako mu no, tapping adwuma no begyina bere a spindle no adu soro anohyeto micro switch no akyi wɔ reverse rotation akyi na popa no.
Abisadeɛ
Wɔ rice cooker heating plate no akyi no, wobetumi de adi dwuma nso ama nneɛma a ɛho hia sɛ wɔbɔ .
spare parts list .
|
Nɔma |
Din |
Nkyerɛkyerɛmu/Drawing nɔma . |
Nsɛm a Wɔka Kyerɛ . |
|
1 |
Quick-Gyae amansan nkwaa . |
10mm . |
|
|
2 |
Fixed universal joint . |
8mm . |
|
|
3 |
Hexagonal poma . |
10*8(mm) . |
|
|
4 |
Shaft Core . |
ER11. |
|
|
5 |
Bɛɛren |
F8-16 |
|
|
6 |
Friction Plate . |
|
Wɔ tapping ti no so . |
Yɛde ma nso .Aburow a wɔde yɛ aduan a wɔde yɛ ɔhyew prɛte a wɔde yɛ aduan . >>>>
So wo custom rice cooker heating plate production line,yɛsrɛ wo ne yɛn engineer no nni nkitaho!
Tags a ɛyɛ hyew .: Multi-Spindles Tapping Machine, China Multi-Spindles Tapping Mfiri a Wɔyɛ, Wɔn a Wɔde Ma
Wɔayɛ afiri no sɛnea ɛbɛyɛ a ɛbɛyɛ den, ɛbɛyɛ ketewaa bi, na ɛnyɛ den sɛ wode bɛhyɛ mu. Ebetumi awie sɛnea wɔyɛ sẽ ntokuru pii ho adwuma bere koro mu, wobetumi de nneɛma ahorow a ɛsono emu biara asi tapping head no ananmu, na wobetumi asiesie beae a ɛse no tokuru no wɔ no wɔ ɔkwan a wɔpɛ so.
Nneɛma atitiriw a ɛwɔ multi-axis tapping afiri no mu: frame nipadua, motor, ne spindle .
Parameter: .
|
Tumi a wɔde ma . |
380V 50Hz . |
|
Tumi |
1.5kW . |
|
Kɛseɛ |
600x900x1900mm . |
|
Afiri mu duru . |
216kg . |
|
Deɛ ahoɔden bɛtumi |
600pcs/hr . |
|
Workbench mpɔtam (mm) . |
300*350 |
|
Spindle ahoɔhare (r/min) . |
1400 |
|
Spindle tumi (W) . |
1500 |
|
Tapping wire a ɛsen biara (mm) . |
6mm . |
|
Shaft ti (mm) no ntam kwan a ɛba fam koraa . |
15 |
|
Tapping beae a ɛsen biara (mm) . |
a wotumi sesa mu wɔ φ250 mu . |
|
Axes dodow . |
9 |
|
Nneɛma a wotumi yɛ no mpɛn pii (mm) . |
0.02 |
|
Ɔhwe a ɛsen biara (mm) . |
65 |
|
Ɔkwan a wɔfa so ma aduan ma . |
Afadeɛ |
|
Nsu a wɔde gu mu . |
Nea ɛka ho ne . |
|
Nsuo pɔmpɛ . |
Nea ɛka ho ne . |
