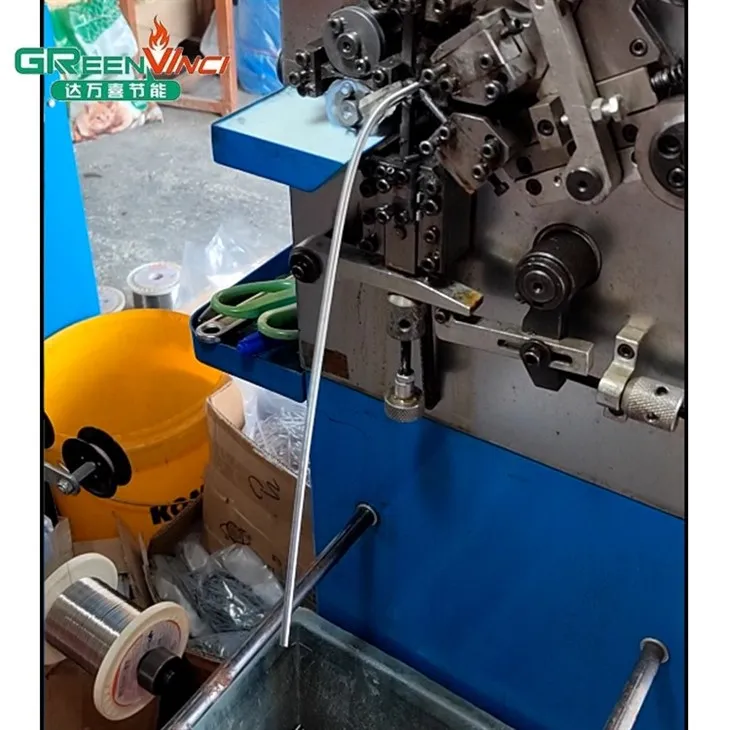

Cartridge heater a ɛko tia afiri a wɔde twitwiw nneɛma .
Nneɛma a wɔyɛ ho nkyerɛkyerɛmu .
Sɛ́ obi a ɔyɛ ɔhyew element mfiri a ɛwɔ mfe 15 osuahu no, yɛte hia a ɛho hia sɛ wɔde ɔhyew hama a ɛkorɔn-su a ɛyɛ papa ma ade a etwa to no ase. Yɛn cartridge heater resistance winding mfiri no yɛ optimized ma winding resistance wire (te sɛ nickel-chromium wire) na ɛyɛ papa ma automated, kɛse-scale production.
Yɛn Cartridge Heater Resistance Winding afiri no de nneɛma a edidi so yi ma:
1. PRECISION WINDING RAnge: Ɛboa wire inner diameters pɛpɛɛpɛ fi φ1mm kosi φ6mm, processing wire diameters a efi fɛ te sɛ φ0.1mm kosi φ1mm, a edi wo nnwumayɛ ahiade ahorow ho dwuma, efi micro to standard heating wires.
. A 90W ahofadi adjustable rɔba ntwahonan motor pɛpɛɛpɛ di wire feed ahoɔhare ma pɛpɛɛpɛ winding pitch control.
3. Efficient and precise cutting: Equipped with a dual-stroke pneumatic cylinder Sɛ́ afiri a wɔde twa ade no, ɛyɛ adwuma ntɛmntɛm na ɛyɛ pɛpɛɛpɛ, na ɛma ɛho tew, burr-wɔtwa a wontua hwee. Mframa a wɔde ma a ɛyɛ 0.5-0.7MPa nkutoo na ɛho hia ma adwumayɛ a ɛyɛ den.
4. Ɔdefoɔ{1}}ADWUMA A ƐFA HO: PLC nkitahodi no yɛ mmerɛw na ɛyɛ mmerɛw, a ɛwɔ parameter nhyehyɛe a ɛyɛ mmerɛw ne mmoa ma kasa ahorow pii.
5. Wobetumi ayɛ no sɛnea ɛbɛyɛ a ebetumi adi adetɔfo ahiade ho dwuma no, afiri no betumi abɔ mframa biako, abien, ne abiɛsa bere koro mu.
Mfiridwuma mu parameter .
|
Tumi a wɔde ma . |
Simplex 220v\\50Hz\\0.6kw . |
|
Mframa a wɔde ma . |
0.5 ~ 0.7mpa . |
|
Nneɛma a wɔde twa type . |
Dual stroke cylinder . |
|
Winding mu ntwemu . |
φ1.0mm~φ6.0mm(mandril na ɛyɛ ne kwan so) . |
|
Wire no kɛse . |
φ1.0mm~φ6.0mm . |
|
Main axis motor . |
370W(Adjustable frequency) . |
|
Wheel motor . |
90W(ahoɔhare a wotumi sesa) . |
|
Nsusuwii . |
750x600x1650mm . |
|
Muduro |
175kg . |
|
Winding resistance pɛpɛɛpɛyɛ no yɛ 2% (ɛfata ma spindle ahoɔhare a ɛyɛ 800-1000 rpm, na resistance a ɛwɔ heating waya no mu no hwehwɛ sɛ ɛyɛ pɛpɛɛpɛ; anyɛ saa a, pɛpɛɛpɛyɛ no bɛka. |
|
Mfaso titiriw a ɛwɔ so .
1. Ɛne nikel-Chromium a wɔde afra ɔhyew nhama te sɛ CR25NI20SI2 ne NI80CR20 hyia.
2. wobetumi atwitwa no tenten ne ohmic resistance a egyina ɔhyew waya mfiri ahorow so.
3. Wobetumi ayɛ nsakrae-diameter wire winding machine no sɛnea adetɔfo ahiade te .
Dɛn nti na ɛsɛ sɛ yɛpaw yɛn .Cartridge heater a ɛko tia afiri a wɔde twitwiw nneɛma .?
1. 15 mfeɛ osuahu wɔ heating element manufacturing mu, hwɛ ma mfiridwuma a mfomsoɔ biara nni ho.
2. Wɔde nneɛma a ɛyɛ den na ɛyɛ yɛn nneɛma a wɔde yɛ nneɛma no, na ɛma ɛyɛ den kɛse bere a ɛreyɛ adwuma no.
3. Yɛn nnwinnadeɛ no yɛ 100% a wɔasɔ ahwɛ ansa na wɔde amena, na sɛ ɛyɛ adwuma koraa a wɔde mena nkutoo.
4. Wɔahyɛ no ma wɔ nnua nnaka mu de ahwɛ ahu sɛ wɔde bɛkɔ baabi a ahobammɔ wom.
5. Video chat ne mu-onipa nhwehwɛmu wɔ hɔ.
6. Baako-afe warranty, a ɛde nkwa nna nyinaa mfiridwuma ho mmoa ma.
