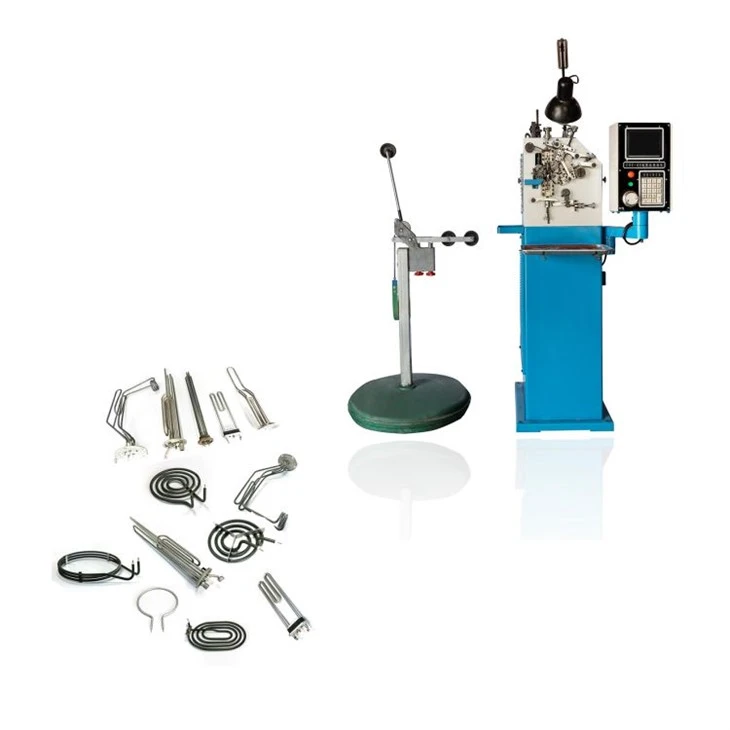

Multi-Afiri a wɔde twitwiw nneɛma a ɛyɛ adwuma yiye .
Product Nnianim Asɛm .
Saa Multi-afiri a ɛma ahoɔden a ɛyɛ adwuma yi yɛ adwuma .'S adwuma titiriw ne sɛ ɛbɛbɔ mframa a ɛko tia mframa (te sɛ nickel-chromium wire anaa iron-chromium-aluminum waya) a atwa mfinimfini poma ho ahyia wɔ ɛnne a ɛyɛ pɛpɛɛpɛ so. Ɛyɛ adwinnade foforo a ɛho hia wɔ ɔhyew nneɛma a wɔyɛ mu (te sɛ anyinam ahoɔden a wɔde yɛ ɔhyew).
Core function ne adwumayɛ nnyinasosɛm .
Botae: Sɛ wɔbɛma resistance coils aba. Nneɛma a ɛyɛ pɛ, ɛnne nnyigyei, ne nea ɛko tia koraa a ɛwɔ coil ahorow no mu no na ɛkyerɛ tumi, ɔhyew a ɛbɛsɛe, ne nkwa nna a anyinam ahoɔden a ɛma ɔhyew no wɔ no tẽẽ. Enti, sɛnea nhama a wɔabɔ no apete no te no gyina sɛnea nnwinnade no yɛ pɛpɛɛpɛ so kɛse.
Adwumayɛ Nnyinasosɛm:
Spindle a ɛkyinkyini .: Spindle no kyekyere mfinimfini poma no na ɛdannan ma ɛyɛ winding adwuma no.
Wire Traversal: .Wire traversal mechanism a ɛyɛ pɛpɛɛpɛ no de nkakrankakra kyerɛ resistance wire no kwan wɔ axis a ɛwɔ support rod no so, na ɛyɛ spiral coil a ɛyɛ pɛ.
Coil (pitch) no mu tightness anaasɛ sparseness no gyina spindle speed ne wire traversal speed no ntam pɛpɛɛpɛ so na ɛkyerɛ.
Nneɛma a ɛko tia nyarewa no sohwɛ:A high-ntɛm encoder hwɛ dodow a spindle revolutions wɔ bere ankasa mu. Afei PLC no bu kuru no tenten a ɛwɔ resistance wire no mu na, egyina resistivity (Ω/m) a ɛwɔ wire no mu no so no, bu current resistance nyinaa wɔ bere ankasa mu.
Product parameter .
|
Tumi a wɔde ma . |
Simplex 220v\\50Hz\\0.6kw . |
|
Mframa a wɔde ma . |
0.5 ~ 0.7mpa . |
|
Nneɛma a wɔde twa type . |
Dual stroke cylinder . |
|
Winding mu ntwemu . |
φ1.0mm~φ6.0mm(mandril na ɛyɛ ne kwan so) . |
|
Wire no kɛse . |
φ1.0mm~φ6.0mm . |
|
Main axis motor . |
370W(Adjustable frequency) . |
|
Wheel motor . |
90W(ahoɔhare a wotumi sesa) . |
|
Nsusuwii . |
750x600x1650mm . |
|
Muduro |
175kg . |
|
Multi-afiri a ɛma ahoɔden a ɛyɛ adwuma no yɛ adwuma . Widing resistance pɛpɛɛpɛyɛ yɛ 2% (ɛfata ma spindle ahoɔhare a ɛyɛ 800-1000 rpm, na resistance a ɔhyew waya no hwehwɛ sɛ ɛyɛ pɛpɛɛpɛ; anyɛ saa a, pɛpɛɛpɛyɛ no bɛka. |
|
Ade titiriw a ɛwɔ mu .
1.Nkonimdi a ɛyɛ pɛpɛɛpɛ:Resistance values anaasɛ winding tenten betumi ayɛ preset. Saa multi-functional resistance wire winding machine yi ara bu akontaa na ɛyɛ adwuma pɛpɛɛpɛ, ɛno ankasa gyae bere a preset output tumi no adu, fapem hwɛ hu sɛ consistency ne pɛpɛɛpɛyɛ anyinam ahoɔden adwumayɛ parameters biara ɔhyew element.
2. Nneɛma a wɔde si ananmu a ɛyɛ mmerɛw .: Wobetumi de spools a ɛyɛ winding a ɛsono wire diameters no asi ananmu ntɛmntɛm, na ɛnyɛ den sɛ wobedi nneɛma ahorow a wɔyɛ no ahiade ho dwuma.
Multi-Functional winding: winding nhyehyɛe soronko bi betumi ayɛ mframa biako, abien, ne mpo triple wires bere koro mu. Afiri biako betumi adi adetɔfo ahiade nyinaa ho dwuma ama adan a ɛnyɛ den na ɛyɛ den, na ama sika a wɔde asie no so mfaso atu mpɔn kɛse.
3. Burry-a ɛwɔ anoano a ɛyɛ mmerɛw:Nneɛma a wɔde twa nneɛma pɛpɛɛpɛ no hwɛ hu sɛ anoano yɛ mmerɛw na ɛyɛ tratraa, na ɛma ɔhyew hama no yɛ papa fi baabi a efi no na ɛkwati asiane a ɛwɔ hɔ sɛ ɔhyew a ɛboro so anaasɛ ɛyɛ tiaa a burrs de ba no.
4. Automatic stop wɔ asɛm a ɛfa nneɛma a ɛnteɛ ho .: Sɛ ɛba sɛ nneɛma a ɛnyɛ ne kwan so te sɛ waya a ɛdannan anaasɛ ɛbubu a, mfiri no gyina na ɛbɔ kɔkɔ, ɛbɔ nneɛma atitiriw a ɛwom no ho ban, ɛtew nneɛma a wɔsɛe no so, na ɛhwɛ ma wɔyɛ nneɛma a ahobammɔ wom na ɛkɔ so.
5.Onipa-afiri ntam nkitahodi .: Equipped ne intuitive touchscreen, parameter nhyehyɛe ne status monitoring no da adi pefee. Ɛsan nso betumi akora parameters a wɔtaa de di dwuma 10 so, a wobetumi afrɛ no wɔ klike biako so bere a woresakra nneɛma a wɔyɛ no, na ama wɔatumi ayɛ nneɛma a wɔyɛ no ntɛmntɛm wɔ nneɛma ahorow ntam.
6. PU ntwahonan abien .Mia ɔhyew hama no so, na hwɛ hu sɛ ɔhyew hama no wɔ mfinimfini na ɛnsakra.
Adwumayɛ nhyehyɛe .
1. Nea edi kan no, fa resistance wire no gu rack no so na fi ase . Multi{0}}Afiri a wɔde twitwiw nneɛma a ɛyɛ adwuma yiye a ɛyɛ adwuma . Afiri no befi ase abɔ resistance wire no akɔ ne tenten a wɔahyɛ ato hɔ.
2. Wɔ winding nhyehyɛe no mu no, afiri no bɛtwa resistance wire no akɔ ne tenten a wɔhwehwɛ no so na ayi afi rack no mu.
3. Wɔde afiri no ahyɛ afiri no mu a ɛhwɛ ma winding no yɛ pɛpɛɛpɛ na wotumi de ho to so. Control system no hwɛ hu sɛ resistance wire no kuru no kɔ specifications a ɛteɛ no so na ɛyɛ pɛpɛɛpɛ.
4. Bere a wɔapirapira waya a ɛko tia no tenten akɔ ne tenten a wɔahyɛ ato hɔ no akyi no, afiri a ɛma ɔhyew a ɛwɔ afiri no mu no bɛma nhama a wɔde gyina hɔ no ayɛ biako no ara akɔ ɔfã a edi hɔ a ɛyɛ no so.
Ɛnyɛ den sɛ wɔde afiri no bɛyɛ adwuma na enhia ntetee kakraa bi. Ɛwɔ ɔdefoɔ{1}}adamfofa interface a ɛma anammɔn-denam{3}}anamɔn akwankyerɛ a ɛfa sɛdeɛ wɔde afiri no di dwuma ho. Bio nso, wɔayɛ afiri a wɔde twe nsu a ɛyɛ hyew a ɛwɔ afiri a ɛma ɔhyew no wɔ ahobammɔ mu a ɛmma akwanhyia ntumi nsi na ɛma ɛyɛ adwuma yiye.
Abisadeɛ
Saa Multi-afiri a ɛyɛ adwuma a ɛko tia ahoɔden a wɔde twitwiw nneɛma yi yɛ nnwinnade a ɛkɔ anim a wɔayɛ ama ɔhyew nneɛma a wɔde kyinkyin. Ɛwɔ dwumadie ahodoɔ a ɛtrɛ wɔ fie mfiridwuma mu na wɔbɛtumi de adi dwuma kɛseɛ wɔ nneɛma ahodoɔ a wɔde yɛ ɔhyeɛ mu, te sɛ nsuo a wɔde yɛ aduane a wɔde yɛ aduane, mframa a wɔde yɛ aduane, ne fononoo.
3-wire winding a wɔawie a egyina 0.5mm resistance wire diameter so .
